Specification
|
Model No. |
ML25C |
ML25.4C |
ML31.75C |
ML32C |
ML38.1C |
ML40C |
ML50C |
|
Standard sample dia.(mm) |
Ø25 |
Ø25.4 |
Ø31.75 |
Ø32 |
Ø38.1 |
Ø40mm |
Ø50mm |
|
Sample qty. |
1~2PC/ per time (spacer optional) |
||||||
|
Spacer (optional) |
Ø25 (ML25AE0211) Ø25.4 (ML25AE0211-1) Ø30 (M30CA0002-4) Ø31.75 (M32C0011-3) Ø32 (M32C0011-3) Ø38.1 (ML38AE0206-2) Ø40 (M40C0006-5) Ø50 (ML50DG0210-4) |
||||||
|
Temperature (°C ) |
0~250 |
||||||
|
Heating power (W) |
1600 |
2400 |
|||||
|
Total power (W) |
2000 |
2770 |
|||||
|
Sample afforded pressure (Kg/cm2) |
Ø25(445) Ø25.4(431) Ø30(309) Ø31.75(275) Ø32(272) Ø38.1(191) Ø40(174) Ø50(111) Please inform us in advance if special demands are required. |
||||||
|
Sample afforded pressure (psi) |
Ø25 (6334) Ø25.4 (6134) Ø30 (4398) Ø31.75(3914) Ø32 (3871) Ø38.1 (2719) Ø40 (2477) Ø50 (1580) |
||||||
|
Heating time (S) |
Max 3600 (60 mins) |
||||||
|
Cooling time (S) |
Max 1800 (30 mins) |
||||||
|
Memory mode (set) |
40 (Heating temperature, heating time, and cooling time ) |
||||||
|
Machine size WxDxH (mm) |
540x560x620 |
||||||
|
Weight(Kg) |
70 |
71 |
|||||
|
Water inlet and outlet pipes |
10mm pipe ( internal diameter- Ø10mm/ external diameter – Ø15mm) |
||||||
|
Power supply |
AC220V-1Ø |
||||||
|
Standard accessories |
Tweezer: 1pc , Funnel: 1pc, Filter: 1set, Spoon: 1pc, Mounting resin: 1kg(2.2lb) Pipe clip: 6pcs, Copper fitting: 2pcs, Screws: 6pcs |
||||||

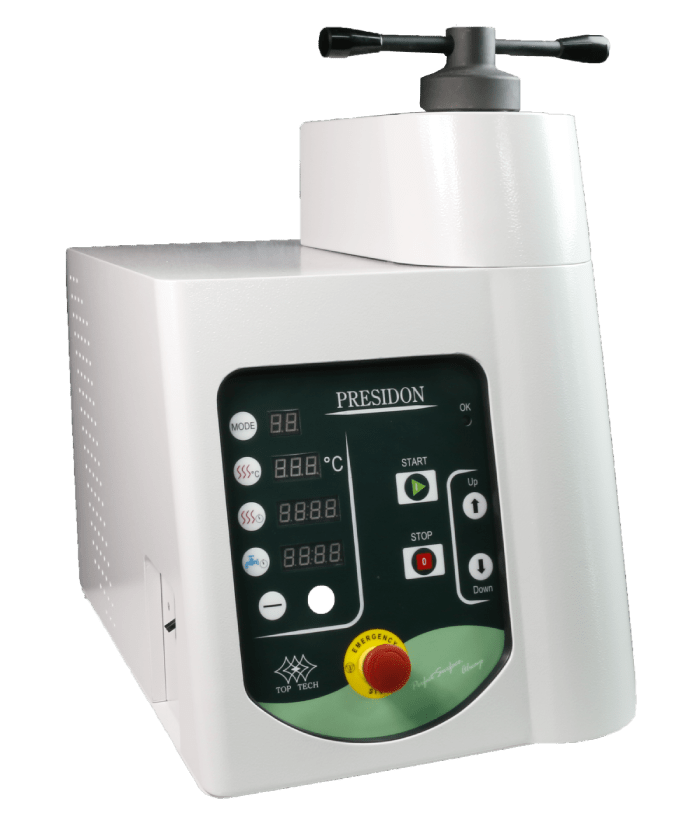

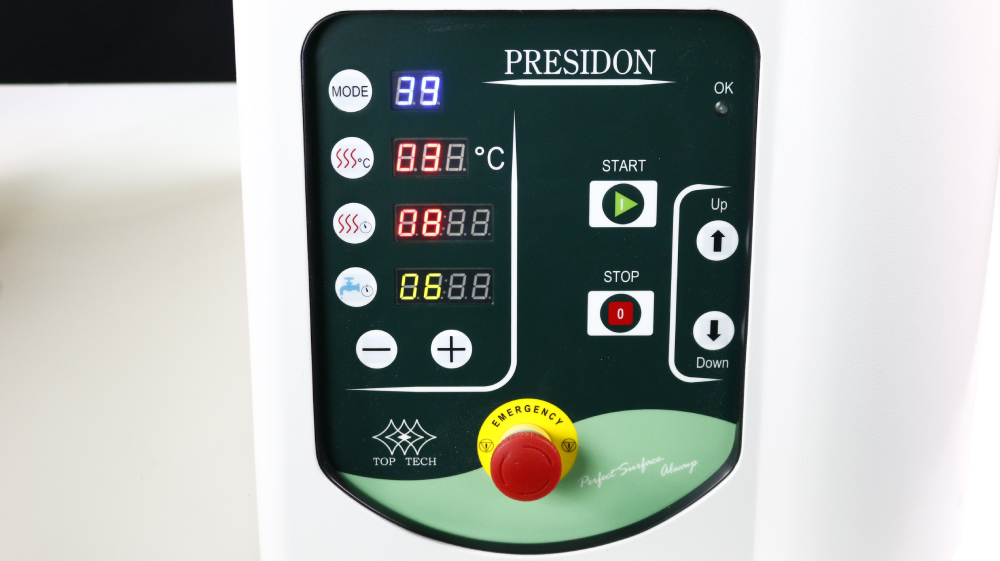

The ML-C Automatic Mounting Press is designed for precision mounting across various applications. It operates automatically and silently, featuring an intuitive control panel that allows users to easily adjust heating and cooling settings based on the specific materials being processed. The press includes memory storage for up to 40 customized parameter sets, enabling quick recall of optimal setups for different projects.
Its robust design ensures reliable performance and user-friendly operation, making maintenance straightforward. The sturdy framework and cover provide stability during use, contributing to consistent mounting quality for a range of tasks.
This mounting press is suitable for professionals of all skill levels, offering a practical solution for achieving accurate and efficient mounting results. With its emphasis on functionality and ease of use, it is a valuable addition to any laboratory or industrial setting.
